Boost Converter State-Space Model
A state-space model of a boost converter in Simulink, with a side-by-side ideal boost for validation.
A video walkthrough is available on YouTube.
What is in this model

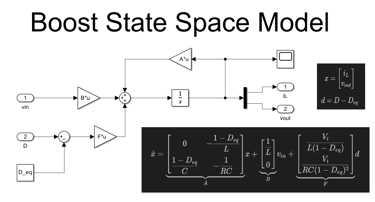

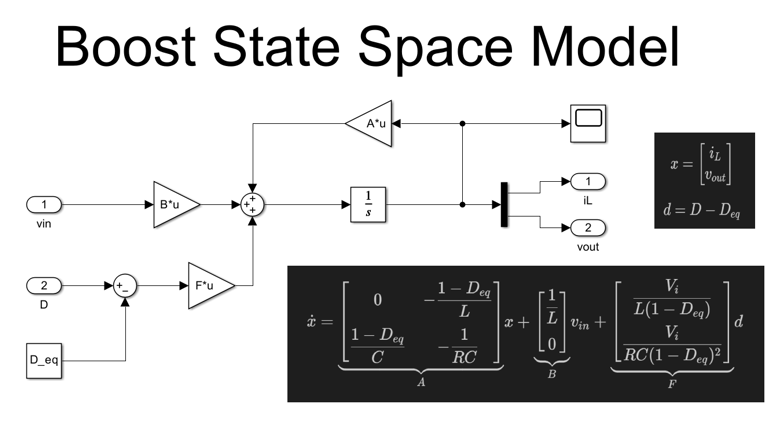

- State-space model: the A, B, C and D matrices parameterised by inductor, capacitor, load resistance, and steady-state duty cycle.
- Switched model: an ideal boost converter running in parallel for validation.
- MATLAB file with the parameters
Specs
| Format | .slx |
|---|
| File size | ~290 KB |
|---|
| Dependencies | Simscape Electrical |
|---|
Get the Simulink model
I will send the file to your inbox shortly after you submit.
Watch the walkthrough on YouTube →
