Boost Converter with Current Control

A boost converter with an outer voltage controller and an inner current controller.

A video walkthrough is available on YouTube.

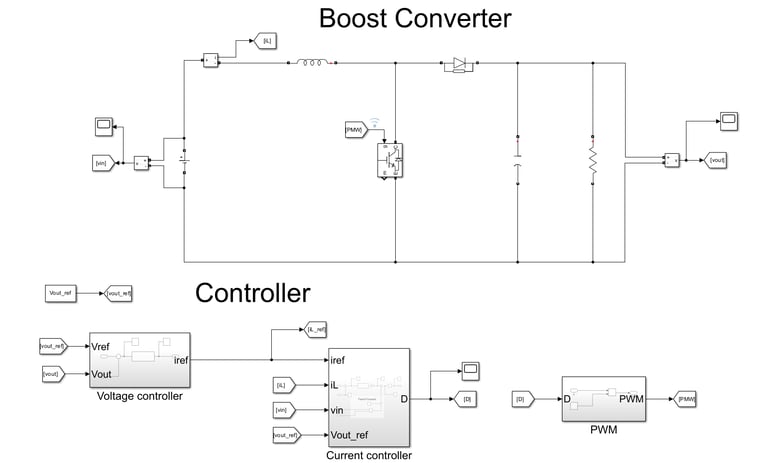

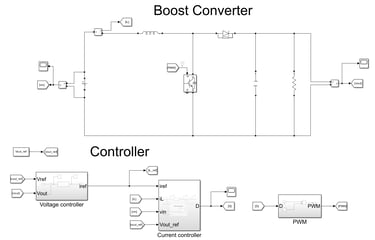

What is in this model

Plant: boost converter with an input inductor, a DC-link capacitor, a switch and a diode.
Inner current loop: PI controller on the inductor current.
Outer voltage loop: The PI controller for the DC-link voltage sets the current reference.
MATLAB file with the parameters

I will send the file to your inbox shortly after you submit.
